| Suction cup material | NBR-55 = Perbunan 55 ± 5 ShA (Camozzi part number "N") SI-55 = Silicone 55 ± 5 ShA (Camozzi Codice "S") |
| Suction cup material on request | HT1-60 = High temperature material 60 ± 5 ShA NK-45 = Natural rubber 45 ± 5 5hA |

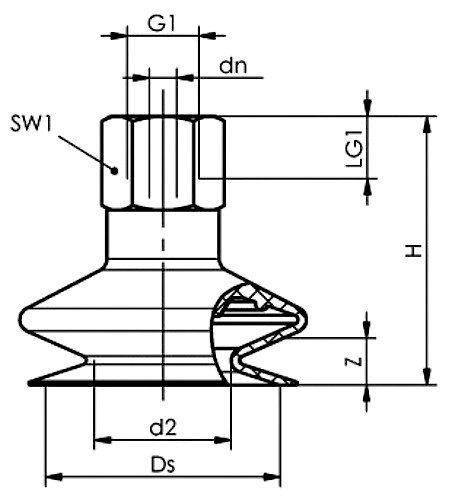

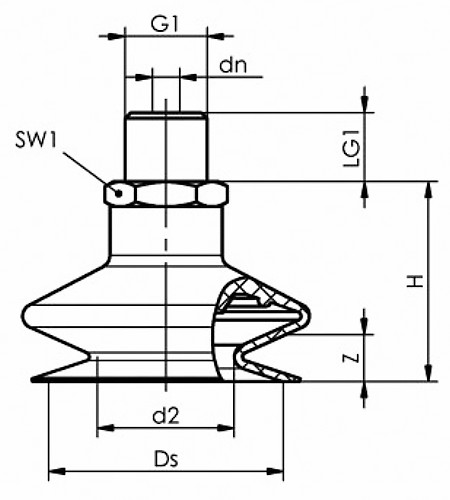

| Supplier code | Camozzi part number | d2 ([mm]) | dn ([mm]) | G1 | H ([mm]) | LG1 ([mm]) | ø Ds ([mm]) | Suction-cup ø ([mm]) | SW1 ([mm]) | Z ([mm]) |
|---|---|---|---|---|---|---|---|---|---|---|
| label SA-NIP N016 G1/8-IG | NPV-R-1/8-F | 5,1 5,0 8,4 11,0 11,7 9,9 | 3,5 | 1/8" | 28,0 27,5 31,2 27,2 31,0 35,0 | 8,0 | 10,4 12,8 15,6 18,1 21,5 22,5 | 11 14 16 20 22 25 | 14 | 4,0 5,0 7,0 5,0 6,0 9,0 |
| label SA-NIP N018 G1/4-IG | NPV-S-1/4-F | 17,0 21,9 33,0 44,5 | 4,4 | 1/4" | 42,0 42,6 49,0 49,0 | 12,0 | 30,0 38,0 50,0 60,0 | 33 43 53 63 | 17 | 9,0 10,0 12,0 14,0 |
| label SA-NIP N019 G1/4-IG | - | 54,0 | 8,2 | 1/4" | 62,0 | 12,0 | 74,0 | 78 | 21 | 14,0 |
| label SA-NIP N010 G1/2-IG | - | 80,0 111,0 | 13,5 | 1/2" | 69,5 89,5 | 13 | 111,0 150,0 | 110 150 | - | 29,5 37,5 |
