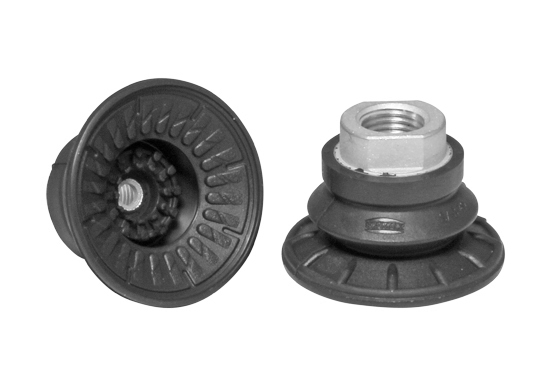

Suction cup part number

Structure	• Handling sheet metal, also for dynamic handling • Robust and resistant with 1.5 folds, special ridging and internal support • Vulcanize-bonded connection nipple (very high resistance)
Suction cup material	NBR-60 = Perbunan 60 Shore (version in NBR-45 = Perbunan 45 Shore on request)
Standard fitting	G1/4" male of female
Fittings on request	• G3/8" male or female • M10 male or female • M14x1.5 male • with rectangular adaptor "RA"

Supplier code	Connection	Breaking force ([N])	Diagonal force* ([N])	Suction-cup ø ([mm])	Suction power* ([N])	Min. radius (convex) ([mm])	Volume ([cm³])
label SAB 30 NBR-60 G1/4-IG	Femmina	33	30	30	22	40	5,9
label SAB 50 NBR-60 G1/4-IG	Femmina	87	55	50	53	50	11,5
label SAB 60 NBR-60 G1/4-IG	Femmina	130	82	60	82	65	24,0
label SAB 80 NBR-60 G1/4-IG	Femmina	221	145	80	135	75	56,5
label SAB 100 NBR-60 G1/4-IG	Femmina	357	220	100	190	90	92,5
label SAB 125 NBR-60 G1/4-AG	Femmina	558	352	125	250	140	191,0
label SAB 22 NBR-60 G1/4-IG	Femmina	24	18	22	16	20	1,5
label SAB 30 NBR-60 G1/4-AG	Maschio	33	30	30	22	40	5,9
label SAB 40 NBR-60 G1/4-IG	Femmina	59	36	40	38	40	7,0
label SAB 50 NBR-60 G1/4-AG	Maschio	87	55	60	53	50	11,5
label SAB 60 NBR-60 G1/4-AG	Maschio	130	82	60	82	65	24,0
label SAB 80 NBR-60 G1/4-AG	Maschio	221	145	80	135	75	56,5
label SAB 100 NBR-60 G1/4-AG	Maschio	357	220	100	190	90	92,5
label SAB 125 NBR-60 G1/4-IG	Maschio	558	352	125	250	140	191,0
label SAB 22 NBR-60 G1/4-AG	Maschio	24	18	22	16	20	1,5
label SAB 40 NBR-60 G1/4-AG	Maschio	59	36	40	38	40	7,0
