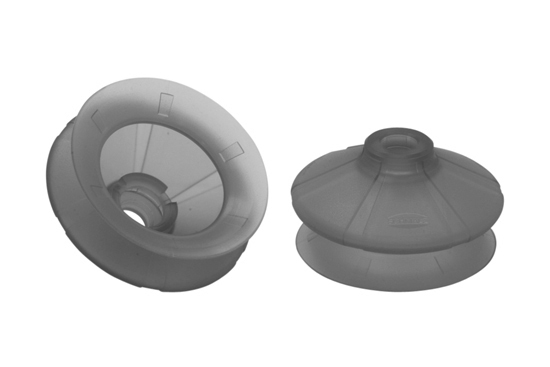

| Structure | • Flexible, adaptable sealing lip • Shape of the fold with high suction pad stroke • Robust, reinforced main body • Interlocking of sealing-lip and fold due to locking elements • Large effective suction surface |
| Suction cup material | ED-65 = ELASTODUR wear-proof |
| Accessories | Fitted filtering mesh (250 μ filter pore size) |

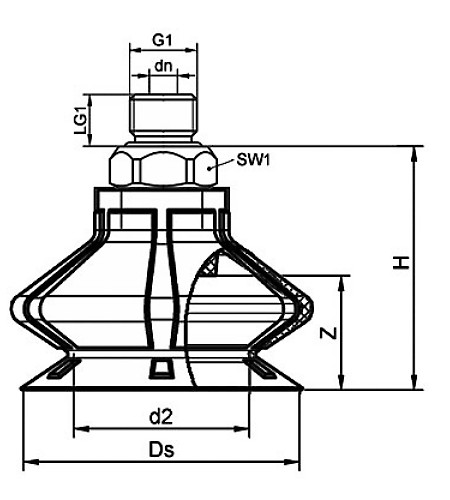

| Supplier code | d2 ([mm]) | dn ([mm]) | Ds ([mm]) | G1 | H ([mm]) | LG1 ([mm]) | Suction-cup ø ([mm]) | SW1 ([mm]) | Z ([mm]) |
|---|---|---|---|---|---|---|---|---|---|
| label SC 040 G1/8-IG | 9,5 13,8 16,9 20,0 | 4 4 4 4 | 15,4 21,4 26,4 31,4 | 1/8" 1/8" 1/8" 1/8" | 29 32 35 37 | 8,0 8,0 8,0 8,0 | 15 20 25 30 | 14 14 14 14 | 6 8 11 13 |
| label SC 050 G1/4-IG | 26,1 32,3 38,6 | 6 6 6 | 41,4 51,4 61,4 | 1/4" 1/4" 1/4" | 47,2 49,2 53,2 | 12,0 12,0 12,0 | 40 50 60 | 17 17 17 | 16 18 22 |
