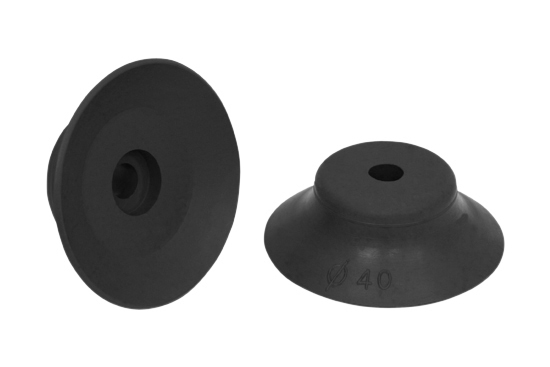

Codice ventosa

Caratteristiche tecniche

Materiali ventosa sandard	NBR-55 = Perbunan 55 ± 5 ShA (Codice Camozzi "N") SI-55 = Silicone 55 ± 5 ShA (Codice Camozzi "S")
Materiali ventosa a richiesta	NBR-AS-55 = Perbunan antistatico 55 ShA SI-AS-55 = Silicone antistatico 55 ShA HT1-60 = Materiale alta temperatura 60 ShA PU-55 = Poliuretano 55 ShA FPM-65 = Caucciù fluorat 65 ShA FPM-AF-55 = Caucciù fluorat antistatico 55 ShA (non lascia impronte)

* La disponibilità dei materiali a richiesta, per i singoli diametri, è da verificare con il nostro ufficio tecnico

Tabella codici

Codice fornitore	Codice Camozzi	Ø Ventosa ([mm])	Potenza aspirazione* ([N])	Raggio volta min. (convesso) ([mm])	Volume ([cm³])
label PFG 1,5 SI-55	-	1,5	0,06	2	0,001
label PFG 8 NBR-55	VTCF-0080N	8	2,30	10	0,030
label PFG 8 SI-55	VTCF-0080S	8	2,30	10	0,030
label PFG 10 NBR-55	VTCF-0100N	10	4,00	13	0,070
label PFG 10 SI-55	VTCF-0100S	10	4,00	13	0,070
label PFG 200 SI-55	-	200	1498,0	400	427,000
label PFG 2 NBR-55	-	2,0	0,12	2	0,001
label PFG 200 NBR-55	-	200	1498,0	400	427,000
label PFG 150 SI-55	-	150	842,0	300	176,300
label PFG 150 NBR-55	-	150	842,0	300	176,300
label PFG 120 SI-55	-	120	540,0	300	77.8
label PFG 120 NBR-55	-	120	540,0	300	77,800
label PFG 2 SI-55	-	2,0	0,12	2	0,001
label PFG 60 SI-55	VTCF-0600S	60	125,0	100	10,000
label PFG 80 NBR-55	VTCF-0800N	80	260,0	150	25,000
label PFG 80 SI-55	VTCF-0800S	80	260,0	150	25,000
label PFG 95 NBR-55	VTCF-0950N	95	350,0	200	35,000
label PFG 95 SI-55	VTCF-0950S	95	350,0	200	35,000
label PFG 6 SI-55	-	6	1,20	8	0,008
label PFG 6 NBR-55	-	6	1,20	8	0,008
label PFG 60 NBR-55	VTCF-0600N	60	125,0	100	10,000
label PFG 50 SI-55	VTCF-0500S	50	91,0	75	7,000
label PFG 50 NBR-55	VTCF-0500N	50	91,0	75	7,000
label PFG 40 SI-55	VTCF-0400S	40	57,7	50	3,800
label PFG 40 NBR-55	VTCF-0400N	40	57,7	50	3,800
label PFG 35 SI-55	VTCF-0350S	35	44,0	50	2,700
label PFG 35 NBR-55	VTCF-0350N	35	44,0	50	2,700
label PFG 30 SI-55	VTCF-0300S	30	34,0	40	1,300
label PFG 30 NBR-55	VTCF-0300N	30	34,0	40	1,300
label PFG 25 SI-55	VTCF-0250S	25	26,5	25	1,300
label PFG 25 NBR-55	VTCF-0250N	25	26,5	25	1,300
label PFG 20 SI-55	VTCF-0200S	20	15,5	20	0,800
label PFG 20 NBR-55	VTCF-0200N	20	15,5	20	0,800
label PFG 15 SI-55	VTCF-0150S	15	9,00	13	0,400
label PFG 15 NBR-55	VTCF-0150N	15	9,00	13	0,400
label PFG 5 SI-55	VTCF-0050S	5	0,75	8	0,005
label PFG 5 NBR-55	VTCF-0050N	5	0,75	8	0,005
label PFG 3,5 SI-55	VTCF-0035S	3,5	0,42	8	0,002
label PFG 3,5 NBR-55	VTCF-0035N	3,5	0,42	8	0,002
label PFG 1,5 NBR-55	-	1,5	0,06	2	0,001
label PFG 1 SI-55	-	1,0	0,03	2	0,001
label PFG 1 NBR-55	-	1,0	0,03	2	0,001
